K2-series

Indoor Fine Pitch LED Screen

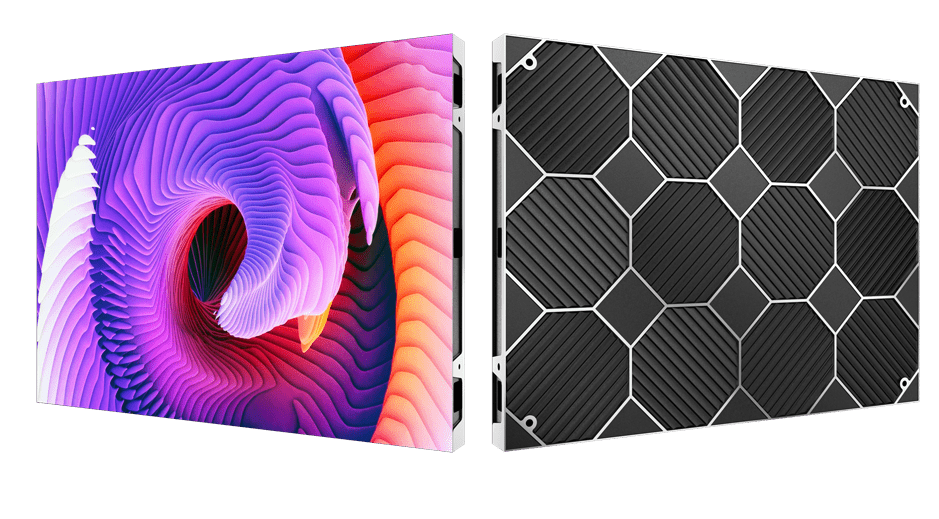

K2-series

Ultra- fine pixel pitch

Unlock more possibilities with lighter & Slimmer design

Highly energy saving to increase productivity

Excellent performance on visual clarity and color uniformity

H 3.png

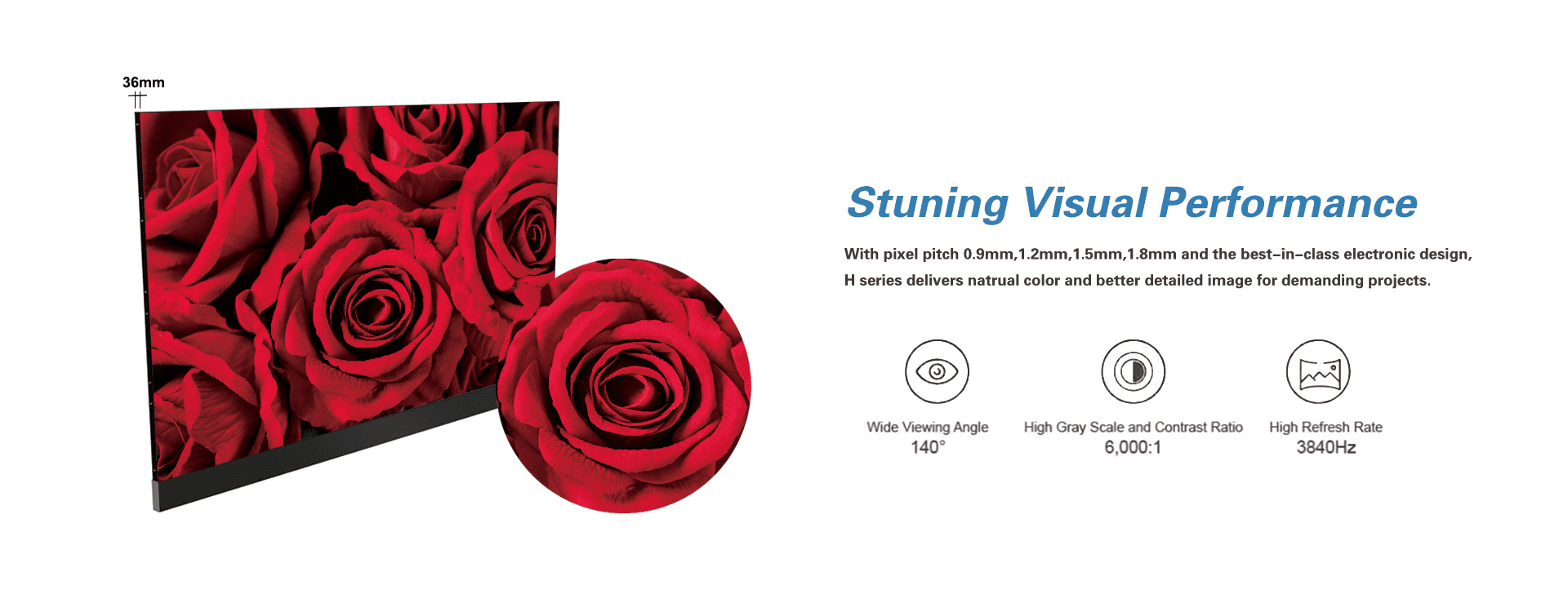

36mm


Ultra-thin

3840Hz


High refresh rate

281 Trillion


Color

4.5kg/pc




H 3.png
爆炸图 3.png 爆炸图 2.png 爆炸图 1.png


Front service1.jpg

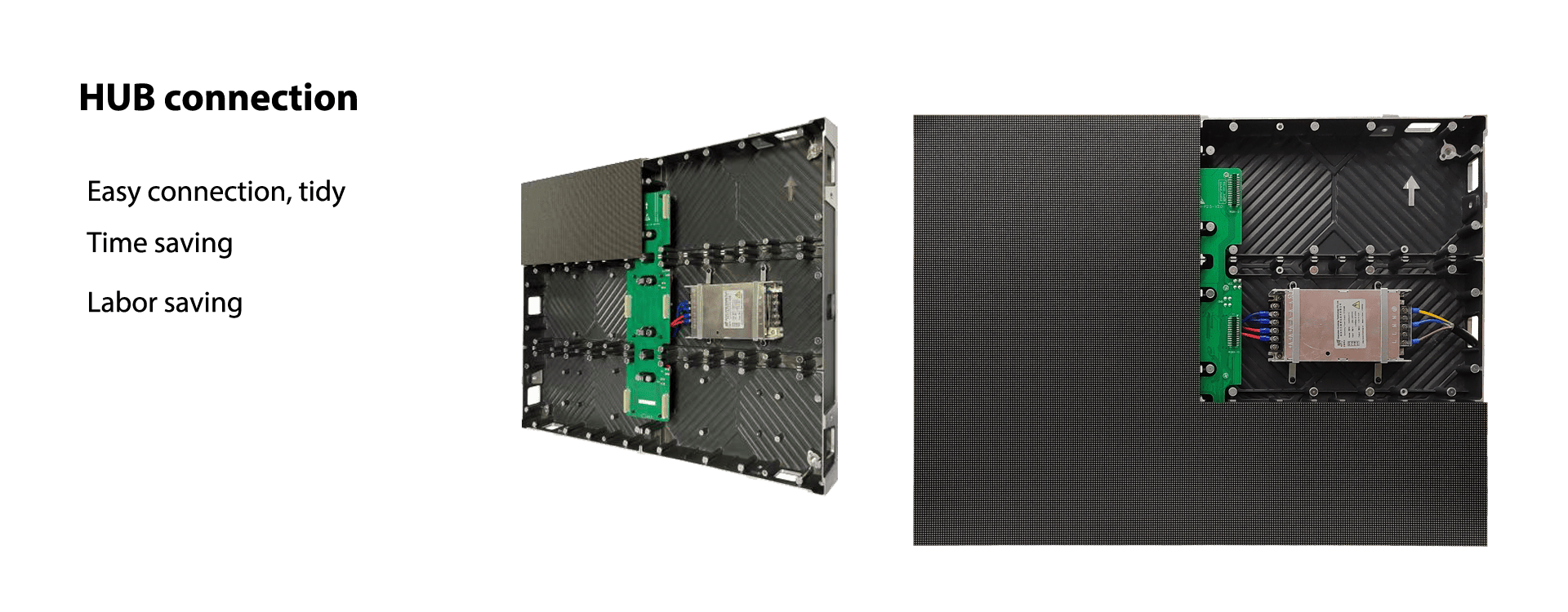

fine pitch hub connection .png


High Resolution


0.9mm


1.2mm


1.5mm


1.8mm


2.5mm

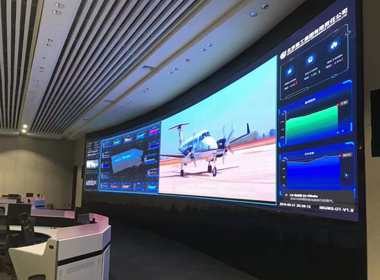

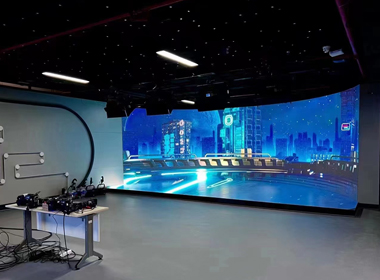

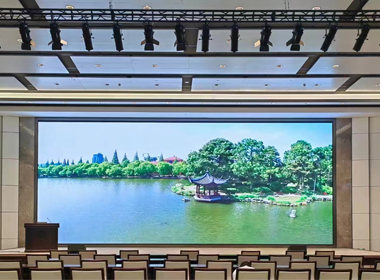

Application Scenarios

Full color outdoor LED displavs are widely used in transportation, schools. media, government projects,

finance, telecommunications and other industries.

Technical Parameter

Model NumberK2-P1.25-L1AK2-P1.53-L1AK2-P1.86-L1AK2-P2.5-L1A
Pixel Pitch1.25 mm1.53 mm1.86 mm1.87 mm
Cabinet resolution512 x 384  Pixels416x 312 Pixels344 x 258 Pixels256 x 192Pixels
Brightness (6000K color temperature)500cd~1000cd/㎡500cd~1000cd/㎡500cd~1000cd/㎡500cd~1000cd/㎡
Pixel density640000 dots/㎡422626 dots/㎡289000 dots/㎡160000 dots/㎡
Pixels constitutionSMD1010
SMD1212SMD1515SMD2020
Cabinet weight5kg
Cabinet dimensions640mm×480mm×36mm
Gray scale16 bit
Contrast ratio5000:1
Peak consumption>600W/㎡
Average consumption100W/㎡~300W/㎡
screen color temperature2000-9500K Adjustable
Module flatness≤0.1mm
Horizontal viewing angle / Vertical viewing angle160°/140°
Refresh rateHigh refresh rate≥3000Hz
Frame rate50-60Hz
Working voltageAC:95V~240V
Power supply modeDC / ACPower supply(Options)
Ingress protection ratingIP41
LED life-time100,000h
Viewing distance≤0.1mm
screen temperature raise(Under normal use)≤20Celsius degree
Pixel calibrationBrightness and chromatic pixel calibrations
Control methodSynchronous / Asynchronous control
Driving methodConstant current drive
Cabinet materialDie-casting aluminium case
Heat dissipation methodElectronics passive cooling,entire unit air-flow cooling
MTBF≥10000 Hours
Power-backupDual backup power supply(optional)
Signal backupDual backup signal(optional)
Transmission distanceCAT5 ,Optic fiber cables when exceed 100 meters
Working temperature/humidity-10~+60℃ / 10%~90%RH,No condensation
Installation wayMount-bracket / Wall-mount / Frame mount
MaintenanceFront service
