RO-3 Series

Robotic LED display

RO-3 Series

Innovative Technology, Dynamic Display Effect

Subverts traditional static displays, attracting more attention

Increases visibility and engagement with the displayed content

Allows for creative and interactive content strategies


three-sided robotic rotating LED screen 2.png

Customization

customization icon .png

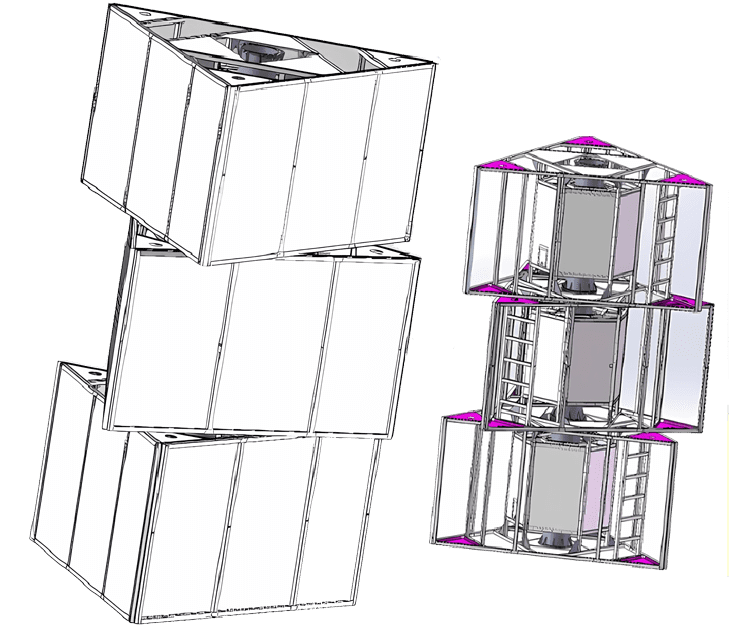

The structure and screen both customized

Rotating 180o

Rotating ICON .png

Rotating speed adjustable

High Stability

High stability ICON.png

Easy Maintenance

maintenance ICON.png



three-sided robotic rotating LED screen 2.png

three-sided robotic rotating LED screen 3.png

three-sided robotic rotating LED screen 4.png

three-sided robotic rotating led screen 5-1.png

three-sided robotic rotating led screen 6.png

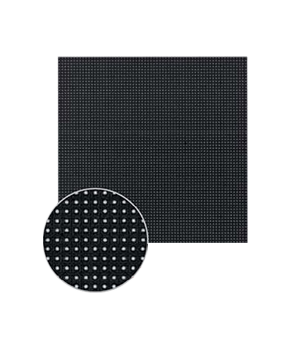

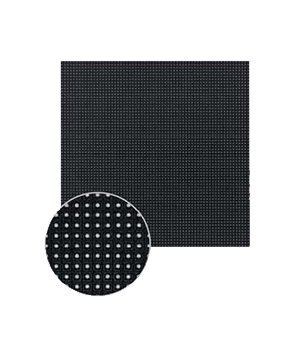

High Resolution


4mm


6mm


8mm


10mm

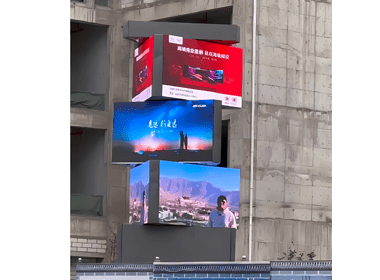

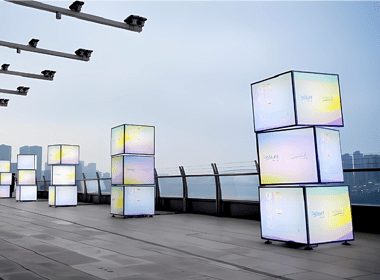

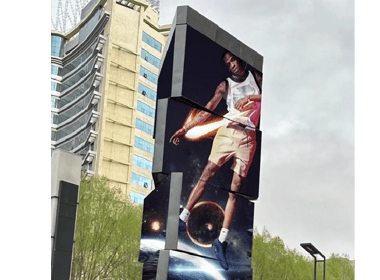

Application Scenarios

Full color outdoor LED displavs are widely used in railway station, airport, media, government projects,

finance, telecommunications and other industries.

Technical Parameter

Model NumberRO-P1.87ISARO-P2ISARO-P2.5ISARO-P3ISARO-P4ISA
Pixel Pitch1.87 mm2 mm2.5 mm3 mm4 mm
Brightness (6000K color temperature)500cd~1000cd/㎡500cd~1000cd/㎡500cd~1000cd/㎡500cd~1000cd/㎡
Pixel density1137778 dots/㎡640000 dots/㎡409600 dots/㎡284444 dots/㎡
Pixels constitutionSMD1515/SMD2020
Gray scale16 bit
Contrast ratio4000:1
Peak consumption≤600W/㎡
Average consumption100W/㎡~300W/㎡
screen color temperature2000-9500K Adjustable
Module flatness≤0.1mm
Horizontal viewing angle / Vertical viewing angle160°/140°
Refresh rateHigh refresh rate≥3000Hz
Frame rate50-60Hz
Working voltageAC:95V~240V
Power supply modeDC / ACPower supply(Options)
Ingress protection ratingIP31
LED life-time100,000h
Viewing distance≤0.1mm
screen temperature raise(Under normal use)≤20Celsius degree
Pixel calibrationBrightness and chromatic pixel calibrations
Control methodSynchronous / Asynchronous control
Driving methodConstant current drive
Cabinet materialDie-casting aluminium case
Heat dissipation methodElectronics passive cooling,entire unit air-flow cooling
MTBF≥10000 Hours
Transmission distanceCAT5 ,Optic fiber cables when exceed 100 meters
Working temperature/humidity-10~+60℃ / 10%~90%RH,No condensation
Installation wayMount-bracket / Wall-mount / Frame mount
MaintenanceFront service
