DT-Series

Interactive floor screen

DT-Series

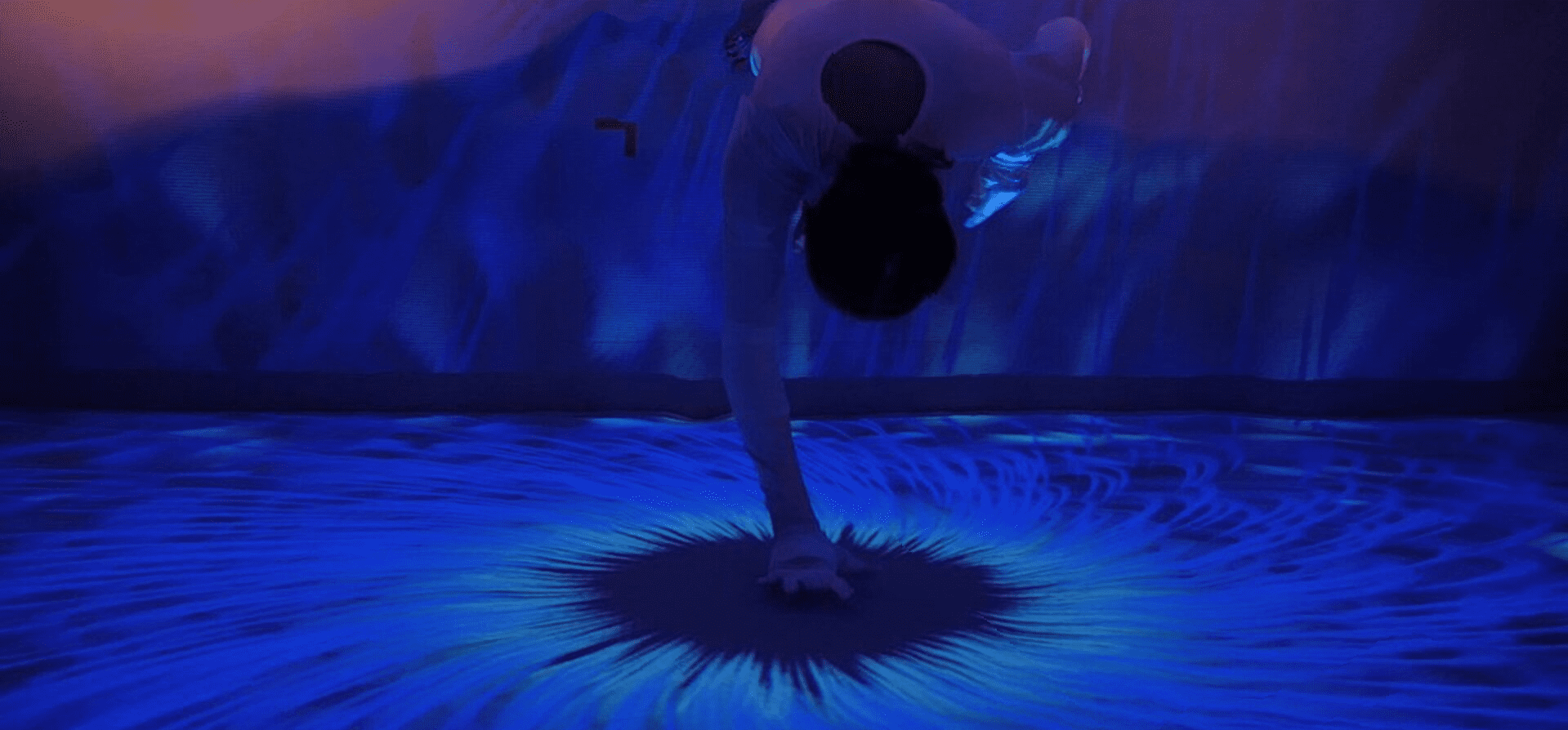

LED floor solution with full interactive capability
High resolution for seamless integration with any stage

led floor 2.png

0.01S Response time1662717954967633.png

Quick responce, brilliant your stage

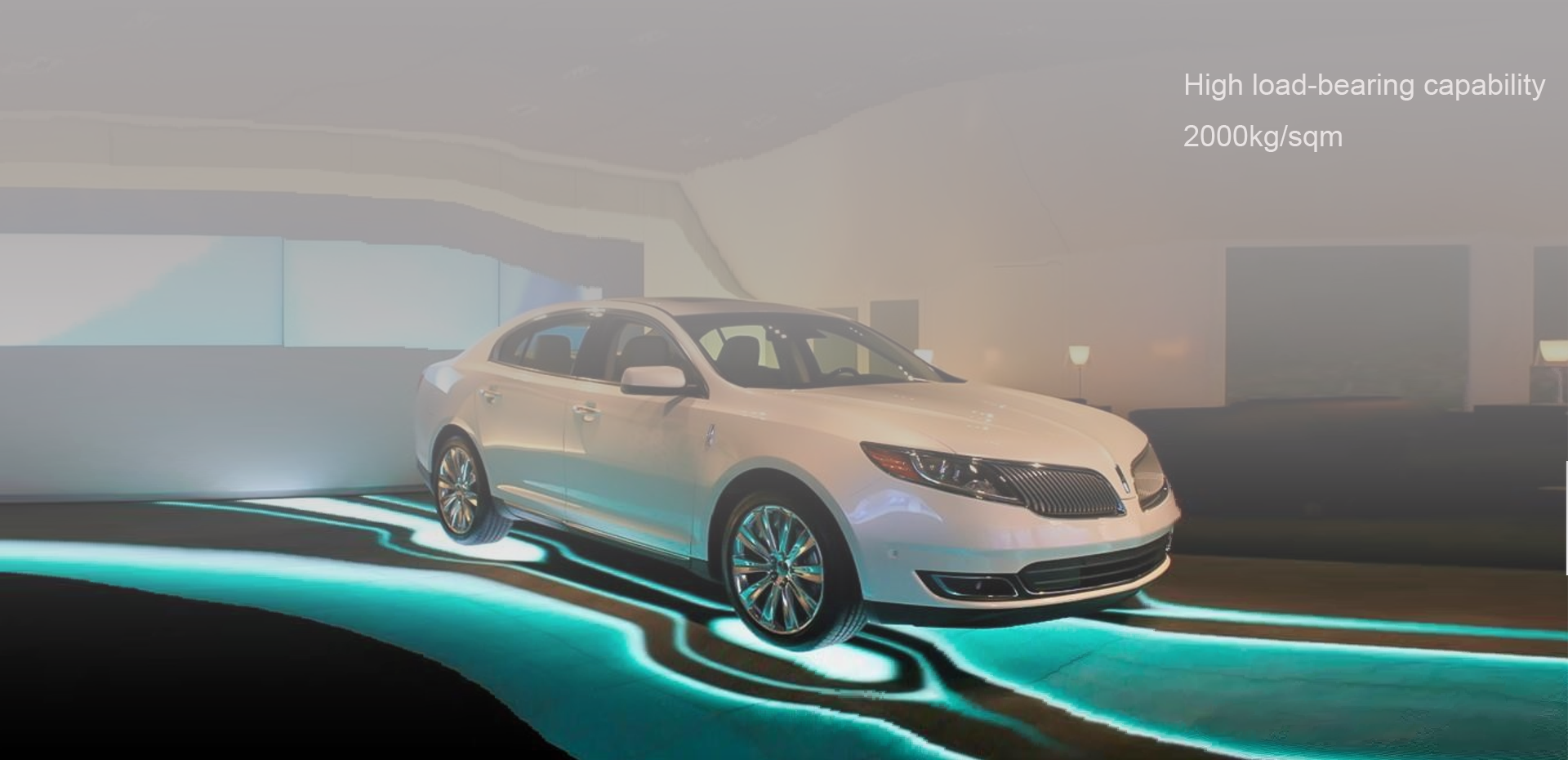

2000kg/m  load-bearing 1.png

High load-bearing capability
IP65 ratingR-waterproof.png
Easy and Inituive Programmingtools.png

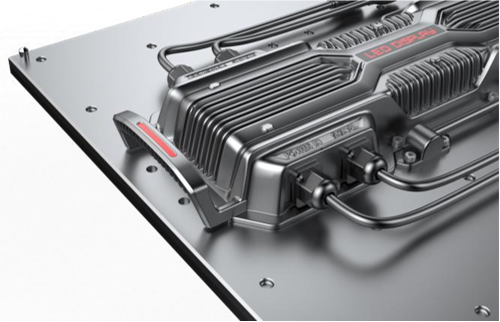

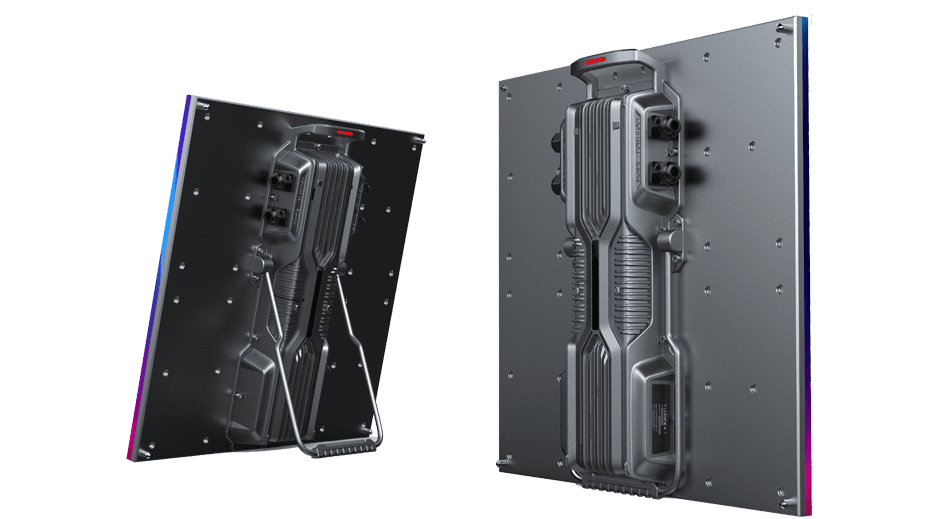

Magenetic modules, easy module swapping 1663050696603900.png


led floor 2.png
loading capability.png

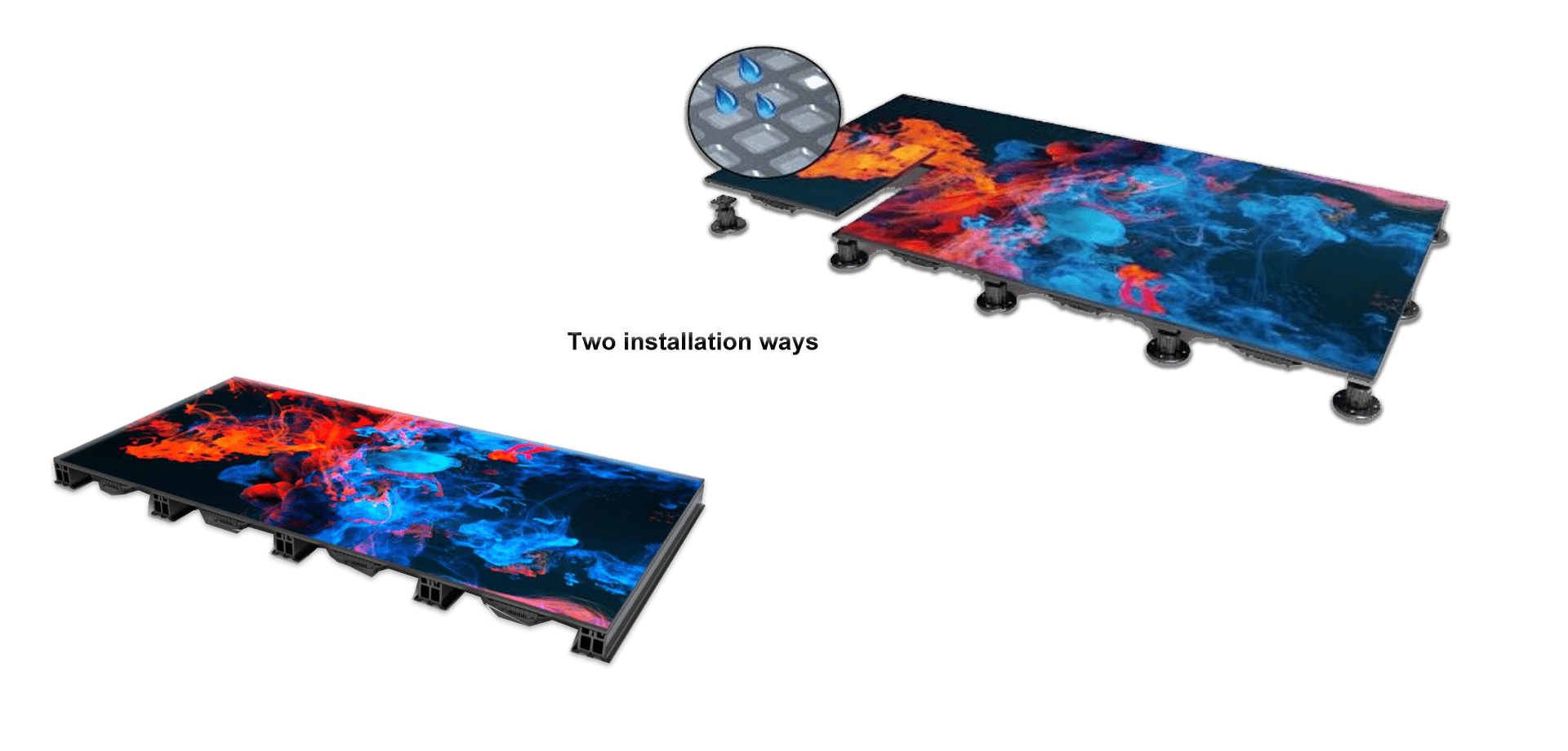

installation methods 9.png

Dance floor 8.png
led floor case 1 web.png

High Resolution

2.604mm

2.97mm

3.91mm

5.2mm

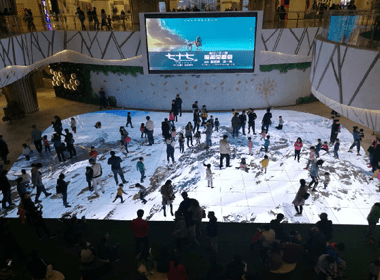

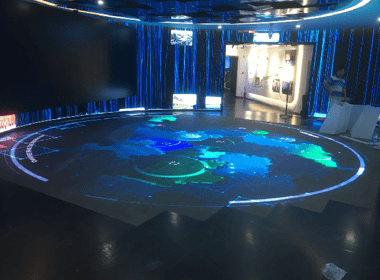

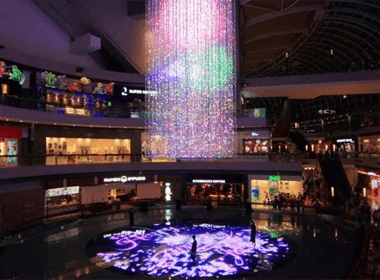

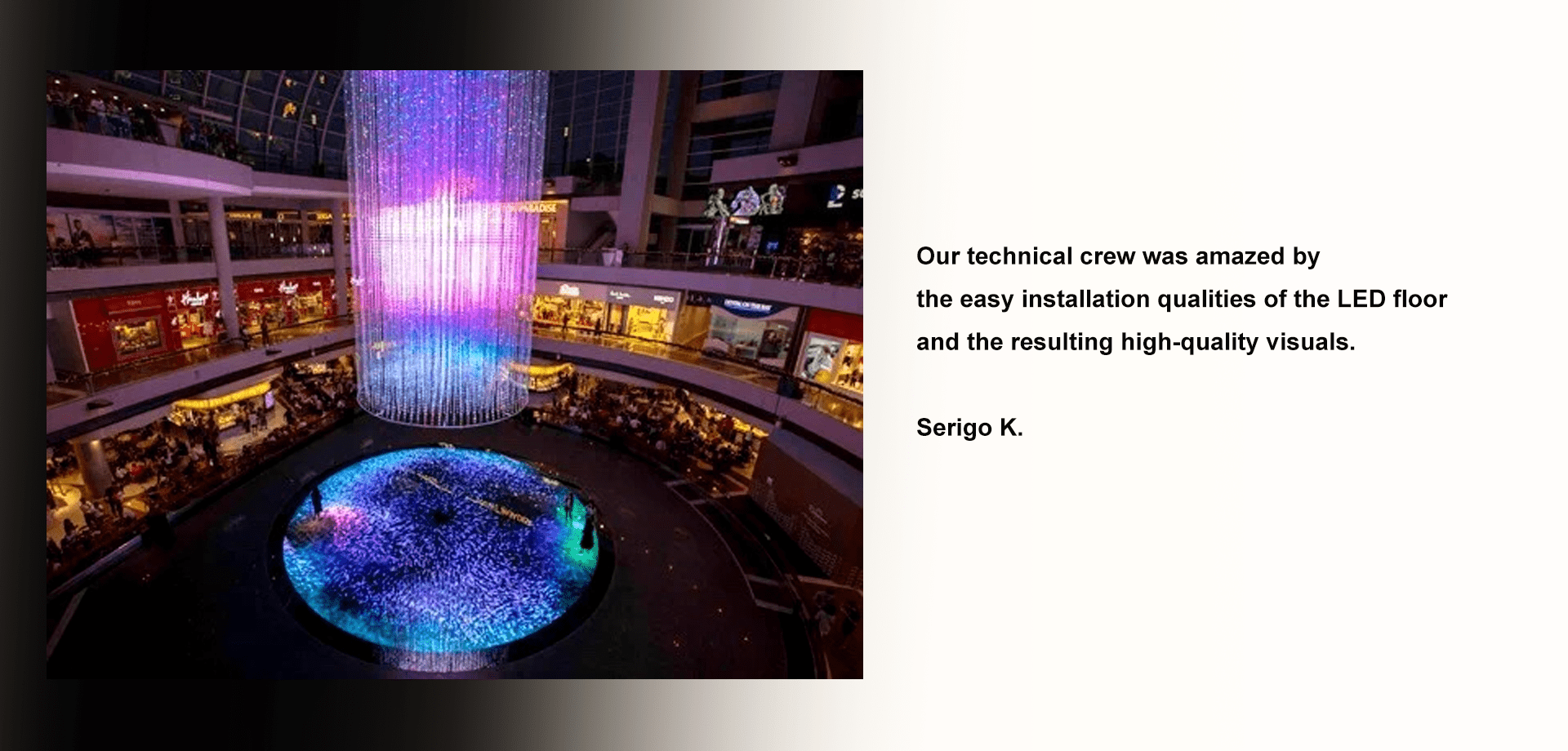

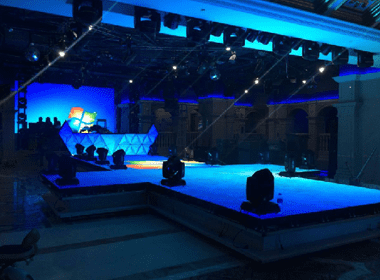

Application Scenarios
The LED floor tile screens are made of high-quality aluminum alloy, advanced electronic ceramics, and other materials for heat conduction and dissipation. It’s widely used in the lighting of buildings, curtain walls, communities, commercial squares, bridges, highways, and architectural lighting; cultural landscapes, gardens, tourist attractions, and other landscape decoration lighting; bars, KTVs, etc., product launches, T-shaped platforms Catwalk; Stage performance, evening party, concert decoration, advertising, media decoration, etc.

Technical Parameter

Model ItemDT-PH2.6DT-PH2.9DT-PH3.9DT-PH5.2
Working Environmentindoorindoorindoorindoor
Ingress protectionIP65IP65IP65IP65
Panel installation typeFixed installFixed installFixed installFixed install
Pixel pitch2.604mm2.97mm3.91mm5.2mm
LED Cabinet size500*500mm500*500mm500*500mm500*500mm
Cabinet materialAluminumAluminumAluminumAluminum
LED lampSMD1415SMD1415SMD1921SMD1921
Density of pixel147456 dots/㎡112896dots/㎡65536dots/㎡36864dots/㎡
Resolution/cabinet192x192dots168x168 dots128x128dots96x96dots
Average power/cabinet150W105W93W93W
Max power/cabinet400W300W300W300W
Driving Method1/16 Scan1/21 Scan1/16 Scan1/12 Scan
Brightness1000cds/㎡1000cds/㎡1000~3500cds/㎡1000~3500cds/㎡
Panel weight (kgs)11kgs11kg11kgs11kgs
Installation Accessfront access
Refresh rate≥3840Hz
viewing angle/H.V.140°
Grey scale/display color65536/display 16.7M
frame frequency≥60HZ
Control system

Synchronous display with control PC by DVI

Malfunction do rate<0.0001
MaskBrown / creamy (Brightness difference)
AC Input Voltage(V) Frequency(Hz)

AC110~ 240V,  50/60Hz

Earth leakage current<0.1mA
working / Storage temperatureworking -30℃~60℃
storage -40℃~85℃
Operating Humidity and Storage Humidity(RH)10﹪~95﹪
CertificationsCE ,ROSH,FCC
Warranty2 years
